Air Conditioning for Pharmaceutical and Chemical Facilities

In pharmaceutical and chemical production, the ventilation system has two jobs that often pull in opposite directions: protecting the product from the environment and protecting people from the product. Which one takes priority depends on the substance being produced, and that decision changes the pressure direction of the room.

Deciding the pressure direction

If the product must be kept sterile or protected from particles, the room is kept positive relative to its surroundings; air flows from clean to less clean and contamination cannot get in.

If toxic dust or volatile solvents are handled, the direction is reversed: the room is kept negative and contamination does not escape. Where both requirements apply, interlocked airlocks are used; the airlock acts as a buffer between the two rooms.

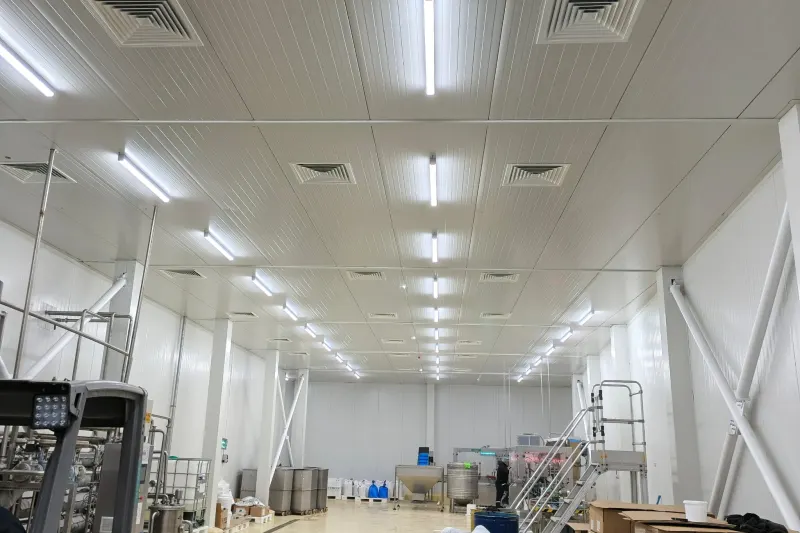

Clean room zoning

Keeping the entire production area at a high cleanliness class is unnecessary in terms of both investment and operating cost. The facility is built in stages: the most sensitive process is kept at a high class in a small area, while surrounding areas are left at a lower class. The pressure difference across the transitions protects this zoning.

Which area achieves which class in which state must be agreed in writing from the start. The same room gives different results when empty, with equipment installed but idle, and in full production; if the reference state is not defined, expectation and measurement will not match at handover.

Solvent and chemical vapour

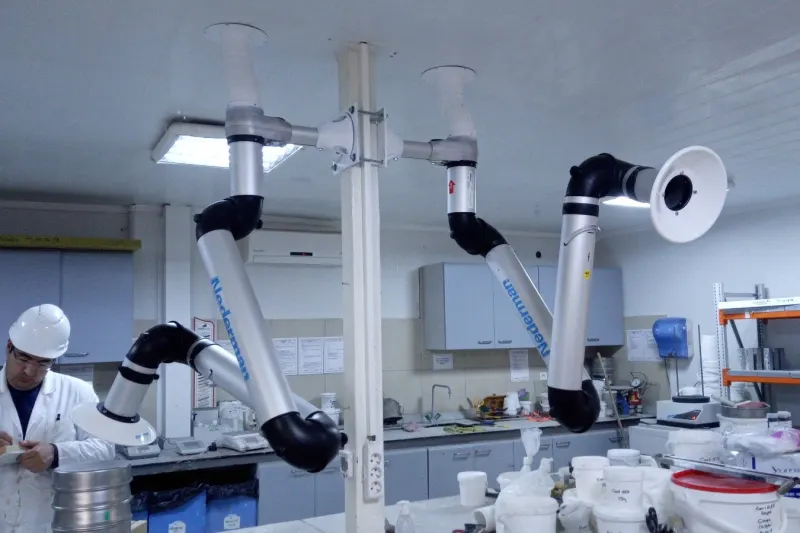

In chemical production, the spread of volatile solvents into the room is a risk for both health and fire. The solution is source capture: local extraction is applied at reactor openings, filling points and sampling areas. The materials used in these lines are chosen to resist the chemicals carried; standard galvanised sheet is not enough in most cases.

In zones where an explosive atmosphere may form, equipment selection and electrical installation are assessed accordingly.

Validation

In pharmaceutical production, it is proven by measurement that the ventilation system works, and this proof is repeated regularly. What is measured: terminal filter airflows, air change rate, pressure differences between rooms, HEPA leak test, airborne particle count, temperature and relative humidity, recovery time.

The results are reported and compared with previous measurements. A system changes over time: filters load up, gaskets age, dampers drift. Validation is not a one-off event but a recurring routine.

Energy and operating costs

Clean room ventilation is one of the highest energy consumers in a facility; a high air change rate and high filter resistance come together. The way to keep cost under control is not to cut airflow but to zone correctly.

If the class must be maintained outside production hours, the system can run at reduced airflow; the pressure cascade is kept but energy consumption falls. This switch is managed by the controls, and the system is brought back to full airflow well before production starts.

In this field, engineering is part of the production licence process. The room schedule, pressure diagram and measurement reports are part of the application file; preparing the design completely from the start therefore speeds up the process significantly.
